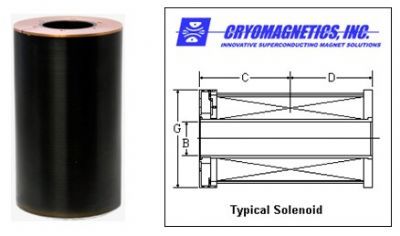

作为世界上**的超导磁体制造商，Cryomagnetics为其他超导磁体集成商和研究人员提供NbTi螺线管超导磁体（NbTi Solenoids Magnet）。其中NbTi螺线管磁体由铜基多股超导细丝缠绕而成，优质超导线提供**磁场稳定性和*小磁滞。磁体线圈完全灌装在一个高导热环氧树脂里，避免超导线滑移而造成磁体形变。设计通过线的铜基和二极管保护磁体失超。失超后二极管替代电阻器保证磁体励磁时的线性，**程度减小充放电时热量的引入。所有线圈都测试过**设计磁场和失超，确保线圈性能达到要求。
所有螺线管的额定磁场是在4.2K下标定的，通常可通过泵抽液氦减压或使用Lambda冷板使磁体在2.2K工作，额定磁场可增加20%
。
Standard 5T Solenoids
Model |
Bore |
Homogeneity |
Current |
Inductance |
50-100-050L |
1.00" |
+/- 0.5% |
44A |
1.1H |
50-100-010L |
1.00" |
+/- 0.1% |
48A |
1.5H |
50-150-050L |
1.50" |
+/- 0.5% |
47A |
1.2H |
50-150-010L |
1.50" |
+/- 0.1% |
52A |
1.7H |
50-200-050L |
2.00" |
+/- 0.5% |
44A |
3.3H |
50-200-010L |
2.00" |
+/- 0.1% |
49A |
3.5H |
50-250-050L |
2.50" |
+/- 0.5% |
48A |
4.5H |
50-250-010L |
2.50" |
+/- 0.1% |
50A |
5.5H |
50-300-050 |
3.00" |
+/- 0.5% |
78A |
2.5H |
50-300-010 |
3.00" |
+/- 0.1% |
74A |
4.0H |
Standard 6T Solenoids
Model |
Bore |
Homogeneity |
Current |
Inductance |
60-100-050L |
1.00" |
+/- 0.5% |
45A |
1.5H |
60-100-010L |
1.00" |
+/- 0.1% |
45A |
1.7H |
60-150-050L |
1.50" |
+/- 0.5% |
50A |
2.0H |
60-150-010L |
1.50" |
+/- 0.1% |
52A |
2.4H |
60-200-050L |
2.00" |
+/- 0.5% |
44A |
5.6H |
60-200-010L |
2.00" |
+/- 0.1% |
49A |
8.6H |
60-250-050L |
2.50" |
+/- 0.5% |
45A |
7.9H |
60-250-010L |
2.50" |
+/- 0.1% |
76A |
4.8H |
60-300-050L |
3.00" |
+/- 0.5% |
74A |
5.1H |
60-300-010L |
3.00" |
+/- 0.1% |
76A |
6.8H |
Standard 7T Solenoids
Model |
Bore |
Homogeneity |
Current |
Indunctance |
70-100-050L |
1.00" |
+/- 0.5% |
48A |
1.8H |
70-100-010L |
1.00" |
+/- 0.1% |
48A |
2.0H |
70-150-050L |
1.50" |
+/- 0.5% |
48A |
2.1H |
70-150-010L |
1.50" |
+/- 0.1% |
49A |
2.5H |
70-200-050L |
2.00" |
+/- 0.5% |
48A |
5.9H |
70-200-010L |
2.00" |
+/- 0.1% |
48A |
9.1H |
70-250-050L |
2.50" |
+/- 0.5% |
47A |
8.5H |
70-250-010L |
2.50" |
+/- 0.1% |
47A |
10.0H |
70-300-050L |
3.00" |
+/- 0.5% |
50A |
14.5H |
70-300-010L |
3.00" |
+/- 0.1% |
46A |
18.2H |
Standard 8T Solenoids
Model |
Bore |
Homogeneity |
Current |
Inductance |
80-100-050 |
1.00" |
+/- 0.5% |
75A |
2.2H |
80-100-010 |
1.00" |
+/- 0.1% |
76A |
3.0H |
80-150-050 |
1.50" |
+/- 0.5% |
79A |
2.4H |
80-150-010 |
1.50" |
+/- 0.1% |
78A |
3.0H |
80-200-050 |
2.00" |
+/- 0.5% |
86A |
3.5H |
80-200-010 |
2.00" |
+/- 0.1% |
76A |
4.2H |
80-250-050 |
2.50" |
+/- 0.5% |
80A |
6.7H |
80-250-010 |
2.50" |
+/- 0.1% |
79A |
8.9H |
80-300-050 |
3.00" |
+/- 0.5% |
83A |
9.9H |
80-300-010 |
3.00" |
+/- 0.1% |
78A |
11.3H |
Standard 9T Solenoids
Model |
Bore |
Homogeneity |
Current |
Inductance |
90-100-010 |
1.00" |
+/- 0.1% |
76A |
3.0H |
90-150-010 |
1.50" |
+/- 0.1% |
78A |
3.0H |
90-200-010 |
2.00" |
+/- 0.1% |
76A |
4.2H |
90-200-010L |
2.00" |
+/- 0.1% |
40A |
32.0H |
90-250-010 |
2.50" |
+/- 0.1% |
79A |
8.9H |
90-250-010L |
2.50" |
+/- 0.1% |
40A |
56.5H |
90-300-010 |
3.00" |
+/- 0.1% |
78A |
11.3H |
90-300-010L |
3.00" |
+/- 0.1% |
40A |
48.0H |
